Roof Pitch Gauge - Gabled

Roof Pitch Gauge - Gabled: Precise Angle Measurement Tool

Roof Pitch Gauge - Gabled is a specialized mobile utility application designed to accurately measure the pitch or slope of roofs using the device's built-in sensors. It eliminates the need for physical tools like inclinometers or levels, offering a digital solution for construction, inspection, and DIY projects. The app provides real-time angle readings in degrees, ratio formats, and percentage slope, with a focus on gabled roof structures. Its interface is streamlined for quick single-hand operation, making it a practical choice for professionals and homeowners alike.

Chapter 1: Function

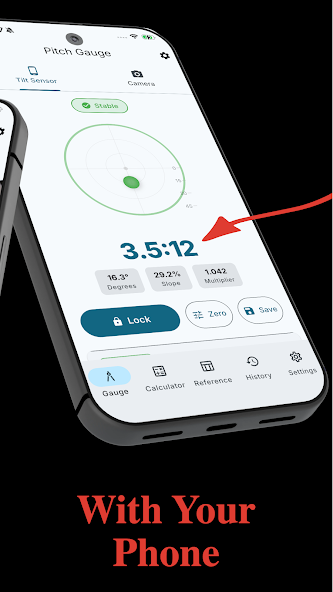

The core function of Roof Pitch Gauge - Gabled is to measure roof pitch by utilizing the smartphone's gyroscope and accelerometer. Users simply place the device flat against a roof surface, and the app instantly calculates the slope angle. It supports multiple measurement units: degrees, rise-over-run ratio (e.g., 6/12), and percentage slope. The app includes a calibration feature to zero out the device's reference plane, ensuring accuracy even on uneven surfaces. It also offers a lock function to freeze the reading after measurement, preventing data loss when removing the phone. Additionally, a target angle mode allows users to pre-set a desired pitch and receive visual or audible feedback when the device reaches that slope, aiding in alignment tasks for gabled roofs.

Chapter 2: Value

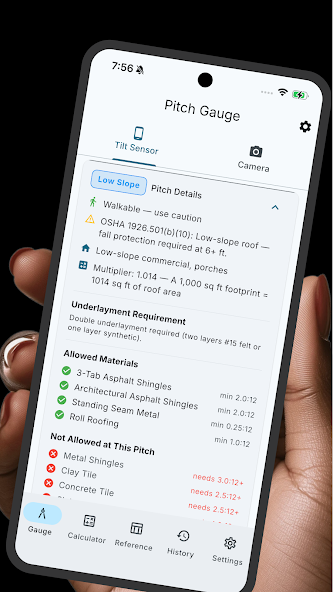

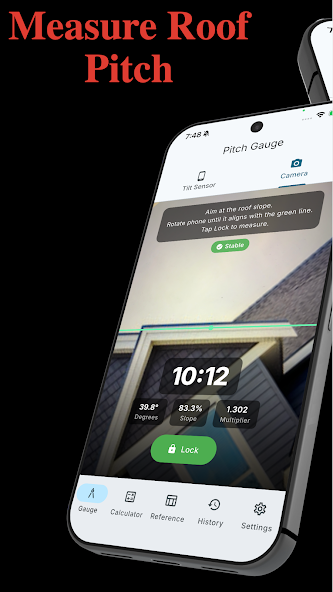

Roof Pitch Gauge - Gabled provides significant value by replacing traditional bubble levels and angle finders with a portable, always-available digital tool. Its primary advantage is convenience; construction workers, roofers, and inspectors can measure roof slopes instantly without carrying additional equipment. The app enhances accuracy by eliminating parallax errors common with manual tools, and the digital display reads to one decimal place in degrees. Another key benefit is safety: users can measure from ground level using photographs or by placing the phone on extended poles, reducing the need to climb dangerous roofs. For DIY homeowners planning gutter installations, solar panel mounting, or repairs, the app offers an affordable alternative to professional tools. It also integrates with building codes, helping users verify compliance with local pitch requirements for drainage and load-bearing. The gabled roof focus means the interface is optimized for steep angle calculations, providing rapid updates and a clear, glare-resistant display for outdoor use. Finally, the app includes a history log that records previous measurements with timestamps, aiding in project documentation.

Chapter 3: Scenarios

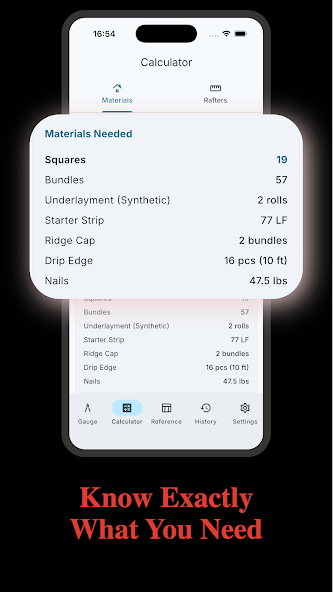

The primary target users of Roof Pitch Gauge - Gabled are professional roofers, home inspectors, and construction contractors who need quick pitch verification on job sites. Common use cases include measuring existing roof slopes before replacing shingles or installing skylights, ensuring new trusses match design specifications, and checking gutter pitch for proper water flow. DIY homeowners also use the app to assess roof accessibility for cleaning, to estimate material quantities for repairs, or to evaluate a property before purchasing. Another scenario involves solar panel installers using pitch data to calculate optimal tilt angles for energy efficiency. The app is particularly useful during post-storm inspections, allowing users to quickly document roof damage slopes for insurance claims. Educational scenarios include vocational training, where instructors demonstrate pitch calculations during carpentry courses. The app's target angle mode aids in aligning ridge boards during gabled roof framing, ensuring symmetry between two slopes. Overall, it serves any situation requiring precise slope measurement without traditional tools.
