EveryCircuit: Interactive Electronics Simulation Tool
EveryCircuit is a mobile app designed for interactive electronics circuit simulation, allowing users to build, test, and visualize analog and digital circuits in real time. It serves as both a learning and prototyping tool, combining a visual schematic editor with a dynamic simulation engine that animates current flow, voltage levels, and signal waveforms. The app is suitable for students, hobbyists, and engineers seeking an accessible way to experiment with circuit behavior without physical components.
Chapter 1: Function

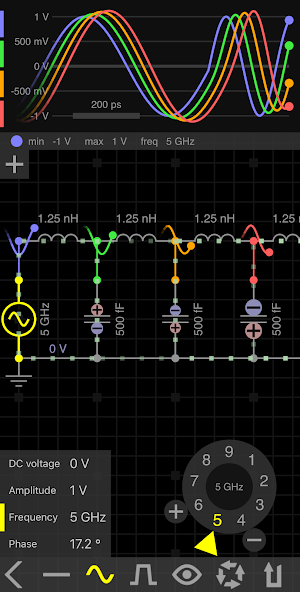

EveryCircuit provides a touch-based interface where users can drag and drop components such as resistors, capacitors, transistors, logic gates, and op-amps onto a canvas to create circuits. The core function is its real-time simulation: when the user modifies a component value or connects a wire, the app immediately updates voltage readings, current direction, and oscilloscope-style waveform graphs. It supports both transient and DC analysis, animating charge carriers moving through wires and indicating voltage levels with color gradients. The app includes a built-in library of common circuit examples, such as amplifiers, filters, and oscillators, which users can modify or learn from. Additionally, it offers a waveform viewer for probing specific nodes, a component value adjustment slider, and the ability to save and share circuit designs. The simulation is accurate enough for educational exploration and rapid prototyping, though it is not intended to replace professional simulation tools like SPICE for complex industrial designs.
Chapter 2: Value
EveryCircuit delivers high educational value by transforming abstract electronics theory into an interactive visual experience. Its primary advantage is the elimination of cost, space, and safety barriers associated with physical breadboarding: users can experiment with high-voltage circuits or rare components without risk of damage or expense. The real-time feedback loop shortens the learning curve for beginners, as they can immediately see the effect of changing a resistor value on an LED brightness or op-amp output. For advanced users, the app enables quick conceptual verification before committing to a hardware build, saving time and material. Compared to desktop simulators, it offers unmatched portability and a touch-friendly interface that makes sketching circuit ideas as intuitive as drawing on paper. A key differentiator is its animated visual style, which explains current flow and node potentials in a way that static schematics cannot. The app also supports importing and exporting netlists, bridging the gap between mobile ideation and professional software. For educators, it serves as a cost-effective classroom tool for demonstrating Kirchhoffs laws, transient response, and digital logic without requiring a lab. Overall, EveryCircuit empowers users to transition from passive reading to active experimentation, fostering deeper understanding and creativity in circuit design.
Chapter 3: Scenarios
The primary target user groups for EveryCircuit are electronics students, hobbyists, and educators. In academic settings, a student studying electrical engineering can use the app to prepare for lab sessions by simulating a common-emitter amplifier circuit at home, adjusting bias resistors to see the effect on gain and output swing. For a hobbyist building an audio mixer, the app allows testing of different op-amp configurations and filter designs on a commute, ensuring the schematic is sound before ordering parts. Educators can project the app during lectures to demonstrate how a low-pass filter responds to changing frequency, using the waveform viewer to show the transition from passband to stopband interactively. Another everyday use case is troubleshooting: a technician can replicate a faulty circuit from a repair job into EveryCircuit, probe suspected nodes, and compare the simulated behavior against expected values to isolate a broken component. The app also suits project planning, such as prototyping a solar battery charger circuit where users simulate varying sunlight conditions by adjusting a photodiode model. For self-learners without access to a lab, it provides a safe environment to explore dangerous circuits like high-voltage power supplies or crowbar protection circuits, building confidence and competence before hands-on practice.
Features & Pros
- visualizes circuit behavior in real-time animation
- allows interactive component adjustment during simulation

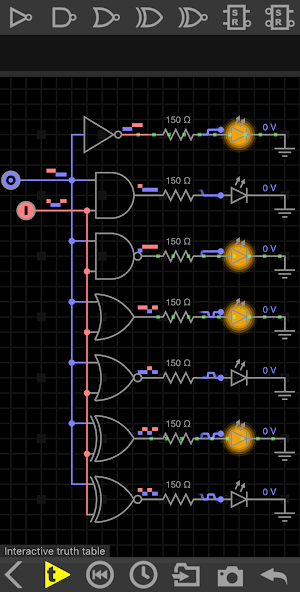

- includes both digital and analog circuit domains
- runs entirely on-device without cloud latency
- supports sharing and forking community designs
Limitations & Cons
- library lacks advanced IC models like op-amps
- no support for PCB layout export or netlist
- simulation accuracy drops with high-frequency signals
- touch interface becomes cluttered with complex schematics
- limited undo history after component changes
Frequently Asked Questions
What is EveryCircuit and what does it do?
EveryCircuit is an electronic circuit simulator for learning and prototyping. It lets users draw circuits with components like resistors, transistors, and ICs, then animate voltage/current flow in real time. No physical parts needed; it runs on Android and iOS devices. Core function is interactive simulation for hobbyists and students.
Does EveryCircuit require in-app purchases or subscriptions?
The basic version is free with limited components and projects. Full access to all parts (op-amps, MOSFETs, 555 timers) and unlimited circuit saving requires a one-time in-app purchase. No subscription model exists. No additional hardware or sensors are needed for simulation.
What devices and operating systems are supported?
EveryCircuit supports Android 5.0+ and iOS 12.0+ devices, including smartphones and tablets. No desktop or web version is available. It is optimized for touchscreens. No external keyboard or mouse required. Compatibility with older devices may vary; check app store for specific updates.
Can I simulate complex circuits like microcontrollers?
No, EveryCircuit cannot simulate microcontrollers, Arduino, or code-based components. It focuses on analog and basic digital logic (gates, flip-flops). For microcontroller simulation, use tools like Proteus or Tinkercad. The app is limited to passive and active discrete components and simple ICs.
How do I troubleshoot if a simulation doesn't run?
First, ensure the circuit is closed (no floating nodes) and power sources are connected. Check that all component values are valid (e.g., no zero resistors). If the app freezes, close and reopen. No official tech support is available; community forums and in-app tutorials address common errors. Replacement or refunds handled by app stores.
